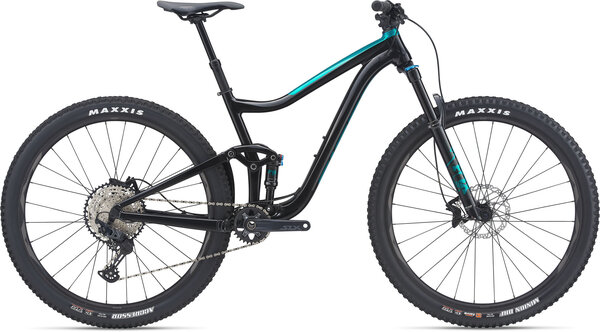

Climb technical steeps and rail descents with confidence and speed. This agile 29er is designed with a smooth and active suspension setup, a lightweight aluminum frame, and progressive trail geometry to help you up your game.
This super-versatile trail machine is built on a lightweight, stiff and super-strong ALUXX SL frameset that blends our latest Maestro suspension technology with progressive, trail-oriented geometry. To soak up every bump, from big rocks to small undulations, we gave it a trunnion mount shock and an Advanced Forged Composite upper rocker arm. This combination produces 115mm of smooth, active rear-wheel travel that puts you in control. Up front, it features a 130mm travel suspension fork, and the overall geometry has been tuned and developed to maximize its performance on rugged trails.
Key Performance Factors
- 29er confidence and control: Larger 29-inch diameter wheels roll over rugged terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.
- Progressive suspension: Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 115mm of full rear travel (and 130mm up front), it has an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
- Trail-tuned chassis: The lightweight and durable ALUXX SL aluminum frameset features fast trail-riding geometry including an aggressive 66.5-degree headtube angle and 74.5-degree seat tube angle, plus a 44mm fork offset. The result is agile and efficient climbing capabilities plus added control for high-speed descents.
|Frame||ALUXX SL-Grade Aluminum, 115mm Maestro suspension|
|Fork||Fox 34 Float Rhythm, 130mm, GRIP damper, Boost 15 x 110 Kabolt, 44mm offset, custom tuned for Giant|
|Rear Shock||Fox Float DPS Performance, 165/42.5, custom tuned for Giant|
|Rims/Wheels||Giant AM 29 wheelset, Alloy, 30mm inner|
Front: 15 x 110
Rear: 12 x 148, sealed bearing
Front: Maxxis Minion DHF, tubeless, 29 x 2.3, 3C, EXO, TR
Rear: Maxxis Aggressor, tubeless, 29 x 2.3, 3C, EXO, TR
|Bottom Bracket||Shimano, press fit|
|Rear Derailleur||Shimano SLX, Shadow+|
|Cassette/Rear Cogs||Shimano SLX, 12-speed, 10 x 51|
|Handlebars||Giant Contact Trail, 35|
|Stem||Giant Contact SL 35|
|Brake Levers||Shimano MT501|
|Brakes||Shimano MT520 hydraulic 4-piston, 180mm|
|Seat Post||Giant Contact Switch dropper with remote, 30.9|
|Accessories & Extras||tubeless prepared|
* Subject to change without notice.
|Black/Teal / Small||04712878618466||2101043104||21T21571447L|
|Black/Teal / Medium||04712878618473||2101043105||21T21798902L|
|Black/Teal / Large||04712878618480||2101043107||21T21423734L|
|Black/Teal / X-Large||04712878618497||2101043108||21T2235223L|
